ANSUL RED LINE Cartridge-Operated Hand Portable Fire Extinguishers

RED LINE cartridge-operated fire extinguishers are the premium firefighting units preferred by safety directors worldwide in high fire-risk industries such as chemical, petro-chemical, oil and gas, mining, aviation, and power generation. Cartridge-operated means increased reliability, on-the-spot recharge, ease of service, and superior firefighting performance.

RED LINE Hand Portable Fire Extinguishers Overview PDF
RED LINE Hand Portable Fire Extinguishers Data Sheet PDF

Request Information
SKU: f5bbc03ae08a Category:

Description

Print Friendly, PDF & Email

RED LINE cartridge-operated fire extinguishers are the premium firefighting units preferred by safety directors worldwide in high fire-risk industries such as chemical, petro-chemical, oil and gas, mining, aviation, and power generation. Cartridge-operated means increased reliability, on-the-spot recharge, ease of service, and superior firefighting performance.

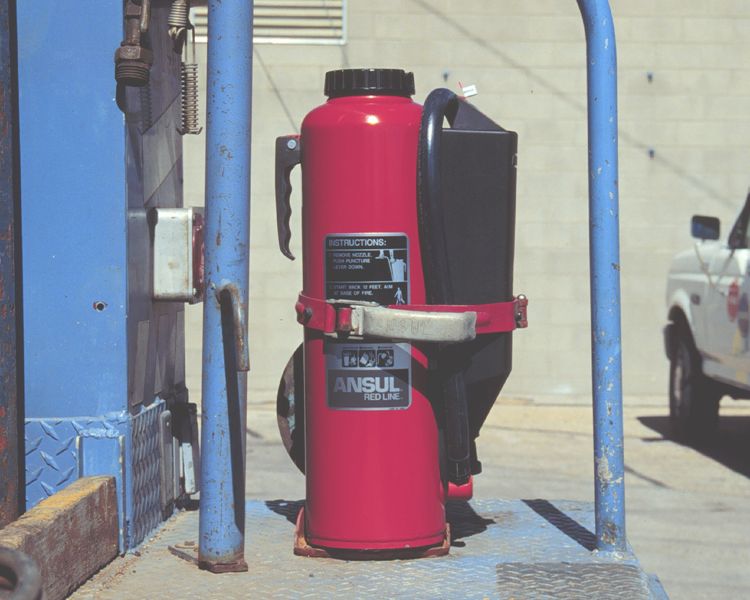

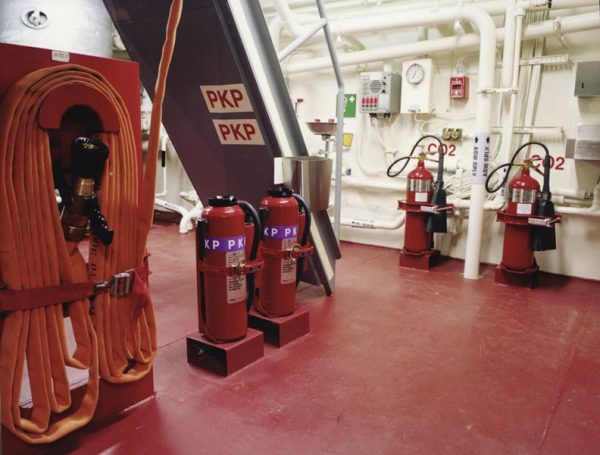

Typical applications include fuel loading racks, heavy construction sites, dip tanks, oil pumping stations, mining equipment, paint lockers, trucks and buses, fuel storage rooms, production lines and others. Tough, carbon steel shells resist impact, vibration and corrosion; quality components stand up to years of service; and special polyester powder paints provide superior protection against cracking and chipping.

Features

Print Friendly, PDF & Email
  • Ergonomically designed for maximum operator performance
  • Meets or exceeds requirements of ANSI/UL 299 and 711 or ULC S504 and S508
  • USCG approved with proper bracket
  • FM Approved
  • Simple and safe operation
  • Maintenance checks can be easily made on every moving part
  • Field rechargeable
  • Four sizes (5, 10, 20, and 30) available with many options
  • Field replacement metal cartridge guard option available for 20 and 30 lb. extinguishers
  • Choice of dry chemical agents to satisfy specific protection requirements
  • Class D dry powder agents are available in 30 lb. extinguisher models only
  • Twelve-year limited warranty

Options

Print Friendly, PDF & Email

Model options:
A wide array of options to customize the extinguishers is available:
5 lb—Slim design used on vehicles and machinery where space is limited. Typical applications include buses, lift trucks, boats, and production line machinery.
10 lb—Designed for high fire-frequency areas where light or ordinary fire hazards exist such as paint lockers. Ideal for installation in remote locations such as on utility and forestry trucks where smaller fires do occur.
20 lb—Designed for larger fires in high-risk areas such as compressors and turbines, storage drums, and oil pumping stations.
30 lb—Designed for larger, intense fires that may occur such as in warehouses, fuel / storage locations, or in mining and heavy construction sites.

Agent Options:
A choice of agents satisfies specific protection requirements and includes:
FORAY Dry Chemical—A monoammonium phosphate-based agent for use on Class A (wood, paper, cloth), Class B (flammable liquids and gases), and Class C (electrical) fires.
Purple-K Dry Chemical—A potassium bicarbonate-based agent that is the most effective ANSUL agent for knock-down of Class B (flammable liquids and gases) and Class C (electrical) fires.
PLUS-FIFTY C Dry Chemical—A sodium bicarbonate-based agent for use on Class B (flammable liquids and gases) and Class C (electrical) fires.
MET-L-X—A sodium chloride-based dry powder for use on most Class D fires involving combustible metals is listed by UL for use on sodium, potassium, and magnesium alloys. (C-models only)
MET-L-KYL—A sodium bicarbonate-based dry chemical and activated absorbents specially designed for suppressing Class D fires involving most trialkyl aluminums. Most of these metal-organic compounds are pyrophoric liquids that ignite on contact with air such as triethylaluminum. (C-models only)
LITH-X—A graphite-based dry powder blended for use on lithium fires. LITH-X agent is also effective on fires involving high melting point metals such as zirconium, titanium and sodium potassium. (C-models only)
Options and sizes vary based on model type. Contact us for details.

Feature Options:
A number of customizable models are available to meet your specific needs:
Corrosion-Resistant (CR) Models

  • In addition to the standard surface preparation procedures, the steel parts are primed using a zinc rich primer with a minimum zinc content of 90 percent.
  • The top coat is a polyester paint applied as a powder and oven cured.
  • The dry film is continuous and is a minimum thickness of 1.5 mm.
  • The hose couplings, fill cap, carrying handle, nozzle body, nozzle lever, nozzle tip and cartridge receiver push lever are black anodized for added corrosion resistance.
  • The cartridge receiver body is painted with an epoxy paint for added protection in corrosive environments. The receiver provides secondary protection against accidental actuation of the unit when the hose is not in place. The operating instruction nameplate notes the removal of ring pin before actuation of the extinguisher.

Ring Pin (RP) Models—The ring pin, when inserted in the cartridge
High Flow (HF) Models—The extinguisher is equipped with a special nozzle and nozzle tip to maximize agent flow rate delivery of over 1 lb. per second of agent The nozzle handle is painted red to differentiate it from standard flow extinguishers.
Note: The high flow agent extinguishers have been designed to fight flammable liquid and gas fires. NFPA10 defines three specific Class B fire hazards for high flow extinguishment as: Pressure Fire Hazards, Three Dimensional Fire Hazards, and Obstacle Fire Hazards. (Reference NFPA 10, Paragraph 5.5.1.1.1 and 5.5.1.1.2, Section 4-3.1 and 4-3.3). The high flow extinguishers can also extinguish all Class B:C fires.
Low Temperature (LT) Models—The LT model is equipped with a nitrogen cartridge, cartridge receiver, and hose that are listed and approved for operation in environments with temperatures as low as -65 °F (-54 °C).
Options and sizes vary based on model type. Contact us for details.

Model 5

Print Friendly, PDF & Email

MODEL 5, Transportation Vehicle Slim Design
The Model 5 has a slim design for use on vehicles and machinery where space is limited. Typical applications include small trucks, buses, lift trucks, mining vehicles, boats, automobiles and production line machinery.

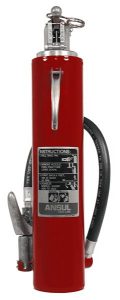

5 lb. RED LINE Extinguisher

5 lb. RED LINE Extinguisher

Bracket 5 lb. USCG RED LINE

Bracket 5 lb. USCG RED LINE

Cover 5 lb. RED LINE

Cover 5 lb. RED LINE

Model 10

Print Friendly, PDF & Email

MODEL 10, High Fire-Frequency Areas
The Model 10 is designed for high fire-frequency areas where light or ordinary fire hazards exist. It is ideal for remote locations where smaller fires occur and on-the spot recharging is necessary. Typical applications include trucks, production line machinery, paint lockers and mining equipment.

I-10-G-1 10 lb. RED LINE Extinguisher

I-10-G-1 10 lb. RED LINE Extinguisher

Bracket 10 lb. RED LINE

Bracket 10 lb. RED LINE

Bracket 10 lb. Heavy Duty RED LINE

Bracket 10 lb. Heavy Duty RED LINE

I-K-10-G 10 lb. Corrosion Resistant RED LINE

I-K-10-G 10 lb. Corrosion Resistant RED LINE

Bracket Corrosion Resistant 10 lb. RED LINE

Bracket Corrosion Resistant 10 lb. RED LINE

Bracket Corrosion Resistant 10 lb. Heavy Duty RED LINE

Bracket Corrosion Resistant 10 lb. Heavy Duty RED LINE

Cover 10 lb. RED LINE

Cover 10 lb. RED LINE

Model 20

Print Friendly, PDF & Email

MODEL 20, Large Fires in High-Risk Areas
Larger fires in high-risk areas require use of the Model 20. Typical applications include dip tanks, storage drums, oil pumping stations, turbines and compressors, quench tanks and large industrial applications.

I-20-G-1 20 lb. RED LINE Extinguisher

I-20-G-1 20 lb. RED LINE Extinguisher

MIL-RP-K-20 20 lb. RED LINE Extinguisher With Bracket

MIL-RP-K-20 20 lb. RED LINE Extinguisher With Bracket

Bracket 20 lb. RED LINE

Bracket 20 lb. RED LINE

Bracket 20 lb. Heavy Duty RED LINE

Bracket 20 lb. Heavy Duty RED LINE

I-20-G-1 20 lb. Corrosion Resistant RED LINE Extinguisher

I-20-G-1 20 lb. Corrosion Resistant RED LINE Extinguisher

Bracket Corrosion Resistant 20 lb. RED LINE

Bracket Corrosion Resistant 20 lb. RED LINE

Bracket Corrosion Resistant 20 lb. Heavy Duty RED LINE

Bracket Corrosion Resistant 20 lb. Heavy Duty RED LINE

Cover 20 lb. RED LINE

Cover 20 lb. RED LINE

Model 30

Print Friendly, PDF & Email

MODEL 30, Large, Intense Fires
The Model 30 is recommended wherever large, intense fires often occur and maximum fire killing power is needed. Typical applications include warehouses, paint-mixing areas, fuel loading racks, fuel storage locations and heavy construction sites.

I-30-G-1 30 lb. RED LINE Extinguisher

I-30-G-1 30 lb. RED LINE Extinguisher

Bracket 30 lb. RED LINE

Bracket 30 lb. RED LINE

Bracket 30 lb. Heavy Duty RED LINE

Bracket 30 lb. Heavy Duty RED LINE

I-30-G-1 30 lb. Corrosion Resistant RED LINE Extinguisher

I-30-G-1 30 lb. Corrosion Resistant RED LINE Extinguisher

Bracket Corrosion Resistant 30 lb. RED LINE

Bracket Corrosion Resistant 30 lb. RED LINE

Bracket Corrosion Resistant 30 lb. Heavy Duty RED LINE

Bracket Corrosion Resistant 30 lb. Heavy Duty RED LINE

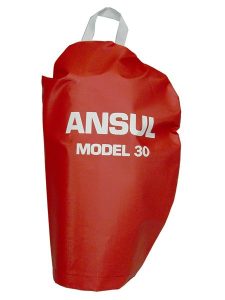

Cover 30 lb. RED LINE

Cover 30 lb. RED LINE

Expellant Gas Cartridges

Print Friendly, PDF & Email

Expellant gas cartridges

  • Factory-tested pressure cartridge installed on the outside of the unit (except Model 5) for easy removal and recharge.
  • Expellant gas cartridges are fabricated of one-piece spun steel in accordance with DOT 3E-1800 (Carbon Dioxide) or DOT 3A-2100 (Nitrogen) and Transport Canada (TC) specifications.
    Note: The Model 5 and Model 10 cartridges with two piece construction are exempt from DOT requirements (due to volume) and are made in accordance with UL/ULC specifications.
  • Standard models are equipped with CO2 cartridges and receivers which are listed and approved for operation in environments with temperatures between –40 °F to 120 °F (–40 °C to 48.8 °C).
  • The Low Temperature (LT) models are equipped with a nitrogen cartridge, cartridge receiver and hose that are listed and approved for operation in environments with temperatures as low as -65 0F (-54 0C).
CO2 Cartridge Group RED LINE

CO2 Cartridge Group RED LINE

Nitrogen Cartridge Group RED LINE

Nitrogen Cartridge Group RED LINE
