Aurora Packaged Fire Pump Systems

Custom and pre-engineered packaged fire pump systems that are factory assembled and tested, leaving only pipe connections, power connections and structural base grouting to be completed on site.

Request Information

Description

Print Friendly, PDF & Email

Custom and pre-engineered packaged fire pump systems that are factory assembled and tested, leaving only pipe connections, power connections and structural base grouting to be completed on site. All fire pump packages built to NFPA 20 & NEC standards with UL listed/FM approved components.

Packaged Fire Pump SystemsFire Pump Packages Standard Equipment

  • UL listed/FM approved Aurora fire pump
  • UL listed/FM approved fire pump controller
  • Aurora jockey pump
  • UL listed jockey pump controller
  • Pressure sensing lines complete per NFPA 20
  • UL Listed / FM approved OS&Y gate valves, butterfly valves and check valves
  • Suction and discharge pressure gauges
  • Automatic casing air release valve
  • Casing pressure relief valve (electric packages)
  • Hose header with valves, caps & chains
  • Suction and discharge piping per NFPA 20
  • All electrical components pre-wired at factory
  • Complete system hydrostatically tested

Diesel Driven Fire Pump Packages also include:

  • Dual batteries with racks and charger
  • UL listed fuel tank sized per NFPA 20
  • Residential grade muffler
  • Flexible exhaust connector
  • Engine cooling loop

Options Available:

  • Witnessed and non-witnessed complete system performance test
  • Test line outlet to connect to remote tank with FM approved flow meter, isolation valves and air release valve
  • Test loop back to suction with FM approved flow meter, isolation valves and air release valve
  • Bypass loop with check valve, isolation valves & air release valve
  • Main system pressure relief valve with enclosed waste cone
  • Relief valve for jockey pump line
  • Double wall fuel tank with low fuel and leak detection alarms
  • Backflow preventor
  • Critical grade muffler
  • Packaged system drains piped to edge of skid

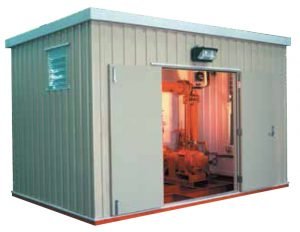

  • Complete fire pump house
  • Fire Pump House

Fire Pumps

Print Friendly, PDF & Email

Single Stage Inline Fire PumpsVertical Inline Single Stage Fire Pump
Model: 383
Offers space-saving efficiency, and flexibility for smaller spaces.
Flows: 50 to 1,500 GPM (11.3 to 340 m3/hr)
Pressures: 40 to 159 PSI (2.7 to 11 bar)

  • UL Listed/FM Approved/NFPA-20 Design
  • Space Saving Vertical Design
  • Easy Maintenance without Disturbing Surrounding Piping
  • Bronze-Fitted Pump Construction



End Suction Fire PumpEnd Suction Fire Pump
Model: 384
Flows: 50 to 1500 GPM (11.3 to 340 m3/hr)
Pressures: 40 to 225 PSI (2.7 to 15.5 bar)

  • UL Listed, FM Approved Performance
  • Electric and Diesel Speeds
  • Back Pullout Design for Easy Pump Service without Disconnecting Pipe
  • Frame-Mounted Design
  • Small Footprint Ideal for Retrofit
  • Designed for Installations such as Schools, Office Buildings and Hospitals



Horizontal Split Case Electric Drive Fire PumpHorizontal Split Case Electric Drive Fire Pumps
Models: 481, 485, 491, 492, 495
Flows: 250 to 5,000 GPM (56.8 to 1135 m3/hr)
Pressures: 40 to 435 PSI (2.7 to 30 bar)

  • UL Listed/FM Approved/NFPA-20 Design
  • F or Commercial, Industrial and Marine Use
  • Diesel and Electric Driven Available
  • Ease of Maintenance



Vertical Split Case Electric Drive Fire PumpsVertical Split Case Electric Drive Fire Pump
Model: 483
Flows: 250 to 2,500 GPM (56.8 to 568 m3/hr)
Pressures: 40 to 200 PSI (2.7 to 13.8 bar)

  • UL Listed/FM Approved/NFPA-20 Design
  • F or Commercial, Industrial and Marine Use
  • Electric Driven Available
  • Lower Initial Cost
  • Ease of Maintenance



Horizontal Split Case Diesel Drive Fire PumpHorizontal Split Case Diesel Drive Fire Pumps
Models: 481, 485, 491, 492, 495
Flows: 250 to 5,000 GPM (56.8 to 1,135 m3/hr)
Pressures: 40 to 435 PSI (2.8 to 30 bar)

  • UL Listed/FM Approved/NFPA-20 Design
  • F or Commercial, Industrial and Marine Use
  • Diesel and Electric Driven Available
  • Lower Initial Cost
  • Quicker Delivery with Red Hot Quick Ship Program
  • Ease of Maintenance



Fire Pumps Vertical TurbineFire Pump Vertical Turbine
Flows: 250 to 4,500 GPM (56.8 to 1,022 m3/hr)
Pressures: 50 to 370 PSI (3.4 to 25.5 bar)

  • UL Listed/FM Approved/NFPA-20 Design
  • F or Commercial, Industrial and Marine Use
  • Special Materials for Seawater Applications
  • Diesel and Electric Driven



Jockey Pump PVM - PVMXJockey Pumps
Models: PVM & PVMX
Horsepower: 1/2 to 40
Flow Series: 1, 3, 5, 10, 15, 20, 33
Capacities: Up to 210 GPM (47.6 m3/hr)
Pressures: 330 PSI (22.7 bar)
Heads: 800 Feet (244 m)
Temperatures: 250°F (121°C)

  • Cartridge Mechanical Seal – can be replaced easily without dismantling the pump
  • Available in Cast Iron or 316 Stainless Steel Materials
  • Standard TEFC Motor
  • Retrofits easily in existing and new installations

Features

Print Friendly, PDF & Email

Packaged fire Pump System Features
A. Aurora Fire Pump
B. Motor
C. Control Panel (Fire Pump)
D. Test Loop
E. Multi-stage Jockey Pump
F. Control Panel (Jockey Pump)
G. OS & Y Gate Valve
H. Swing Check Valve
I. Flow Meter
J. Suction Pressure Gauge
K. Discharge Pressure Gauge
L. Coupling (Guard Not Shown)
M. Relief Valve (Jockey Pump Line)
N. Air Release Valve (Pump Casing)
O. Relief Valve (Fire Pump)
P. Air Release (Test Loop)
Q. Check Valve (Jockey Pump Line)
R. OS & Y Gate Valve (Jockey Pump Suction)
S. OS & Y Gate Valve (Jockey Pump Discharge)
T. Butterfly Valve
U. Concentric Increaser
V. Eccentric Reducer
W. Butterfly Valve (Test Loop)

Aurora Pump offers vertical turbine fire pump systems for static suction conditions. Vertical turbine systems come complete with pump, driver, controller, flow-measuring device, relief valve with waste cone, check valves, and pressure sensing line.
Vertical Turbine Fire Pump System Features

Systems

Print Friendly, PDF & Email

Packaged Fire Pump SystemsPentair Aurora packaged fire pump systems are fully-integrated and custom-engineered, designed and built to meet and exceed the requirements for each unique job specification. They are built to the stringent standards of NFPA 20, UL,FM, and other regulatory bodies, and ship fully tested and certified to the highest quality standards. Packaged fire pump systems provide single source system responsibility for maximum reliability and up-time.

Packaged Fire Pump systems include the pump, driver, controller, jockey pump and jockey pump controller, and other required components mounted on a common base. Whether simplex, duplex, or triplex configuration, electric motor or diesel engine driven, the systems are pre-piped and pre-wired for ease and speed of installation. Every detail is integrated in a fully coordinated system to ensure that the heart of the system performs perfectly, now and in the future.
Pentair’s Packaged Fire Pump systems are available with full protective enclosures suitable for any climate or site condition. To address applications in harsh environments or with sea or brackish water, pumps and other components are available in advanced metallurgies including 316 Stainless Steel, Duplex and Super Duplex Stainless Steel, and Nickel Aluminum Bronze. System accessories include a full range of jockey pumps, UL/FM valves and other UL/FM accessories.
Custom and pre-engineered packaged fire pump systems are factory assembled and tested, leaving only pipe connections, power connections and structural base grouting to be completed on site. All fire pump packages built to NFPA 20 & NEC standards with UL listed/FM approved components.
Packaged Fire Pump System

  • UL Listed/FM Approved Aurora® Fire Pump
  • UL Listed/FM Approved Fire Pump Controller
  • ETL Listed
  • Aurora Jockey Pump
  • UL Listed Jockey Pump Controller
  • Pressure Sensing Lines Complete per NFPA 20
  • Listed OS & Y Gate & Butterfly Valves with Tamper Switches
  • Suction and Discharge Pressure Gauges
  • Automatic Casing Air Release Valve
  • Casing Pressure Relief Valve (Electric Packages)
  • Hose Header with Valves, Caps & Chains
  • Suction and Discharge Piping per NFPA 20
  • Removable Lifting Lugs



Compact Fire Pump SystemsCompact Fire Pump Systems
Flows to 750 GPM (170.3 m3/hr)
Pressures to 160 PSI (11.0 bar)

  • Ideal for Smaller Areas – Fits through a 36″ Doorway
  • Multiple Starting Methods Available for the Fire Pump with Optional Automatic Transfer Switch
  • Optional City Bypass
