DoorKing Telephone Access Control Systems

Simple to use, yet these PC programmable systems are sophisticated enough to provide service for up to 3000 users, control up to 16 entry points and they can store the last 8000 events in their history buffer so you know the “three W’s” of access control: who, when, where.

DoorKing 1835 Telephone Entry System Brochure PDF
DoorKing 1837 Telephone Entry System Brochure PDF
Request Information

SKU: f5bbc03ae08a Category:

Description

Print Friendly, PDF & Email

DoorKing provides a full range of telephone entry systems and accessories to meet your specific application requirements.

The DKS 1830 series of telephone entry and access control systems are suited for a wide variety of applications. Simple to use, yet these PC programmable systems are sophisticated enough to provide service for up to 3000 users, control up to 16 entry points and they can store the last 8000 events in their history buffer so you know the “three W’s” of access control: who, when, where. With expanded optional capabilities, you can even add true anti-pass back and elevator control.

You can now program online 24/7 giving you the freedom to work when and where you want. From remote bookkeeping and access, to security control on the ground – and everything in between. You even get confirmation to your PC so you always know when your transaction is done.

A complete turn-key access management solution.

Features

Print Friendly, PDF & Email

PC Programmable by any of the following methods:

  • The Internet via DKS IM Server (patent pending)
  • The Internet
  • LAN
  • Hayes compatible modem
  • RS-232 direct connection

IP Addressable / Retrofit 1830s

  • TCP/IP converter allows you to program via the internet.

Options

Print Friendly, PDF & Email

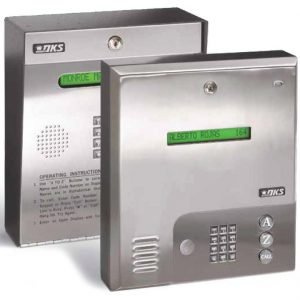

DoorKing 1837 Telephone Entry System with Eight Line LCD Display

DoorKing 1837 Telephone Entry System with Eight Line LCD Display

DoorKing 1835 Telephone Entry System with Single Line LCD Display

DoorKing 1835 Telephone Entry System with Single Line LCD Display



Options

  • Elevator control option controls up to 8 elevators, each serving up to 64 floors (restricts system users to only authorized floors)
  • Optional tracker boards provide system expansion to control up to 16 access points. See page 62 for new Wireless Tracker Expansion Boards
  • Available Surface Mount, Flush Mount or Wall Mount

Model 1835 | 1837

  • Remote Account Manager and Transaction Analysis software is included. (Live Transactions view activity AS IT HAPPENS on your computer display).
  • Programmable directory codes (1-4 digits).
  • 10 and 11-digit dialing capability.
  • Live Streaming.
  • Live transactions.
  • 8000 event transaction buffer.
  • Database import/export capability.
  • Holiday schedule.
  • Hold open time zones.
  • Built-in clock/calendar.
  • Built-in postal lock provision.
  • True Full Duplex Communication.
  • Stores up to 3000 telephone numbers and names.
  • 8 hold open time zones.
  • 4-digit entry codes, one for each telephone number.
  • EEPROM memory.
  • Requires touch-tone, loop-start central office phone line.
