HID Proximity Card - Reader
HID proximity cards and readers are recognized as the industry standard for physical access control. Featuring 125 kHz RFID technology, HID proximity products are robust, affordable and seamlessly integrate with access control systems.

HID Proximity Readers

Print Friendly, PDF & Email

ProxPoint Plus Reader
ProxPoint® Plus
125 kHz value priced proximity card reader.

  • Small sized reader features a beeper and multicolor LED which can be host and/or locally controlled
  • Can mount directly on metal with no change in read range performance
  • Power requirements: 5-16 VDC
  • Dimensions: 3.14˝ x 1.70˝ x 0.66˝ (7.96 cm x 4.3 cm x 1.68 cm)
  • Read Range: up to 3.0˝ (7.5 cm)

MiniProx Reader
MiniProx®
125 kHz mullion mount proximity card reader.

  • Power requirements: 5-16 VDC
  • Dimensions: 6.0˝ x 1.7˝ x 1.0˝ (15.2 cm x 4.3 cm x 1.91 cm)
  • Read Range: up to 5.5˝ (14.0 cm)

Thinline II Reader
Thinline® II
125 kHz low profile proximity card reader.

  • The size of most standard U.S. switch plates
  • Available with Wiegand or Clock-and-Data interface
  • Power requirements: 5-16 VDC
  • Dimensions: 4.7˝ x 3.0˝ x 0.68˝ (11.9 cm x 7.6 cm x 1.7 cm)
  • Read Range: up to 5.5˝ (14.0 cm)

ProxPro Reader
ProxPro®
125 kHz versatile proximity card reader.

  • Ideal for medium-range applications
  • Available with Wiegand, Serial (RS-232/RS-422) or
    Clock-and-Data interface
  • Power requirements: 10-28.5 VDC
  • Dimensions: 5.0˝ x 5.0˝ x 1.0˝ (12.7 cm x 12.7 cm x 2.54 cm)
  • Read Range: up to 8.0˝ (20.5 cm)

ProxPro with keypad Reader
ProxPro® with keypad
125 kHz keypad proximity card reader with keypad.

  • Ideal for medium-range applications
  • Available with Wiegand, Serial (RS-232/RS-422) or
    Clock-and-Data interface
  • Power requirements: 10-28.5 VDC
  • Dimensions: 5.0˝ x 5.0˝ x 1.0˝ (12.7 cm x 12.7 cm x 2.54 cm)
  • Read Range: up to 8.0˝ (20.5 cm)

ProxPro II Reader
ProxPro® II
125 kHz new generation proximity card reader.

  • Versatile Proximity Card Reader
  • Optional glass mount kit available for mounting the
    reader behind glass
  • Power requirements: 5-16 VDC
  • Dimensions: 5.0˝ x 5.0˝ x 1.0˝ (12.7 cm x 12.7 cm x 2.54 cm)
  • Read Range: up to 8.0˝ (20.5 cm)

MaxiProx Reader
MaxiProx®
125 kHz long range proximity card reader.

  • Auto-tune allows read range to be maintained within four inches of metal
  • RS-232, RS-422, and RS-485 output modes are configurable
  • “Parking hold” feature ensures accurate detection of vehicles in parking lanes
  • Reads all HID Formats
  • Power requirements: 12 or 24 VDC (configurable)
  • Dimensions: 12.0˝ x 12.0˝ x 1.0˝
    (30.5 cm x 30.5 cm x 2.54 cm)
  • Available in Wiegand or Clock-and-Data Interface
  • Read Range: up to 24.0˝ (61.0 cm)

HID Proximity Credentials

Print Friendly, PDF & Email

ProxCard II Cards
ProxCard® II
Value priced 125 kHz proximity card

  • Price competitive with all other card technologies
  • Thin enough to carry in a wallet or purse

ISOProx II Cards

ISOProx® II

125 kHz thin proximity card

  • Combines proximity technology and offers photo identification capability on a single card
  • Graphics quality surface for use with direct image printers
  • Same size and thickness as a standard credit card
  • Vertical or horizontal slot punch capability

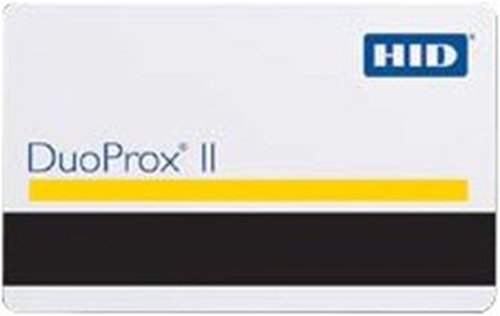

DuoPro II Cards
DuoProx® II
125 kHz thin proximity card with magnetic stripe

  • Combines proximity technology and offers photo identification capability on a single card
  • Graphics quality surface for use with direct image printers
  • Same size and thickness as a standard credit card
  • Vertical or horizontal slot punch capability
  • Magnetic stripe technology
  • Thin enough to be used with standard swipe or insert readers

Smart ISOProx II Cards
Smart ISOProx® II
125 kHz ISO-thin proximity card, contact smart chip embeddable (optional magnetic stripe)

  • Allows a contact smart chip module to be embedded for multi-technology applications
  • Graphics quality surface for use with direct image printers
  • Smart DuoProx II includes magnetic stripe
  • Same size and thickness as a standard credit card

Smart DuoProx II Cards
Smart DuoProx® II
125 kHz ISO-thin proximity card with magnetic stripe, contact smart chip embeddable

  • Allows a contact smart chip module to be embedded for multi-technology applications
  • Graphics quality surface for use with direct image printers
  • Smart DuoProx II includes magnetic stripe
  • Same size and thickness as a standard credit card

MicroProx Tag
MicroProx® Tag
125 kHz proximity adhesive tag

  • The size of a coin, the Tag easily attaches to all nonmetallic materials
  • The Tag can be programmed in any HID proximity format, and is compatible with all HID proximity readers
  • The Tag is RF-programmable for ease of encoding with HID’s ProxProgrammer®

ProxKey III
ProxKey® III
Convenient 125 kHz proximity key fob

  • Small enough to fit on a key ring
  • Universal compatibility with HID proximity readers
  • Dimensions: 1.56” x 1.25” x 0.24” (3.95 x 3.18 x 0.60 cm)
  • Weight: 0.14 oz (4.0g)

ProxPass II
ProxPass® II
Long range 125 kHz proximity active vehicle tag

  • Active tag for vehicle access control
  • Provides up to eight-foot read range
  • Solely compatible with the MaxiProx® reader and all HID card formats
  • One year warranty
  • Replaceable battery
  • Dimensions: 3.61˝ x 2.66˝ x 0.30˝ (91.6 x 67.5 x 7.6 mm)

iCLASS Prox Card
iCLASS® Prox Card
13.56 MHz iCLASS contactless smart card and 125 kHz proximity thin card

  • 13.56 MHz iCLASS read/write technology and HID 125 kHz proximity technology in a single ISO standard thickness card
  • Enables contactless smart card applications to be added to an existing HID proximity technology access control system
  • Offers the ability to add a magnetic stripe, barcode, anti-counterfeiting feature, custom artwork, or photo ID
  • Meets ISO standards for thickness for use with direct image and thermal transfer printers

MIFARE Prox Card
MIFARE®/Prox Card
125 kHz thin proximity & 13.56 MHz MIFARE® card (optional magnetic stripe)

  • Combine MIFARE 1K and HID proximity technologies to add smart card applications, such as cashless vending, corporate and campus applications, event ticketing, customer loyalty and photo ID cards, to access control systems
  • Provides high security with mutual authentication, data encryption and unique 32-bit serial number and supports all HID proximity card formats, including Corporate 1000
  • Photo ID compatibility allows printing directly to the card with a direct image or thermal transfer printer
  • Cards can be produced with visual security and anti-counterfeiting features such as holograms, ultra-violet fluorescent inks, micro-printing or a custom logo
  • Also Available in Composite Polyester / PVC and MIFARE 4K versions
