By using NOTIFIER AV Accessories, devices can adapt to nearly any application with the appropriate accessory. Mounting options allow strobes, speakers, horns, chimes, and strobe combinations to be placed in new and existing construction with professional results. NOTIFIER L-Series Audible Visible Accessories Data Sheet PDF Request Information
By using NOTIFIER AV Accessories, devices can adapt to nearly any application with the appropriate accessory. Mounting options allow strobes, speakers, horns, chimes, and strobe combinations to be placed in new and existing construction with professional results. Note: Separate accessories are available for SpectrAlert Advance and L-Series devices to provide high quality aesthetics.
MP120KL Mounting Plate
Designed for both indoor and outdoor use
Plug-in design eliminates ground faults
Color Lens Attachments
Easily turns any device into a strobe for ECS/MNS events: severe weather, toxic gases, sprinkler activation and more
Wall- or ceiling-mount lenses available
Decals and Bezel Kits
Easily turn a Fire or Plain device into a device to meet ECS/MNS requirements
Available for strobes, horns, chimes, horn strobes, chime strobes and speaker strobes
Options for FIRE, ALERT, EVAC, AGENT, PLAIN, FUEGO, FOGO
Trim Rings
Trim rings are used to retrofit legacy devices and provide a clean finish.
Back Boxes
Surface-mountable back box designed to fit the aesthetics of the AV devices.
Specifications
MP120KL Mounting Plate
Power supply that converts 120 VAC to nominal 24 V FWR
Compatible with all two-wire L-Series devices
Color Lens Attachments
Outdoor rated from −35°F to 151°F
UL 1638 listed
Decal Kits
For use with SpectrAlert Advance devices only
Bezel Kits
For use with L-Series devices only
Operating temperature -40°F to 151°F
NOTIFIER AV Accessories Components
Note: ULC-listed devices include required French labeling. See Agency Listings for listing details.
SURFACE MOUNT BACK BOX
SBBWL, SBBRL. Wall-mount, compatible with standard
horns, strobes, horn strobes, chimes and chime strobes (White, Red).
SBBSPWL, SBBSPRL. Wall-mount, compatible with speakers and speaker strobes (White, Red).
SBBCWL, SBBCRL. Ceiling-mount compatible with horns, strobe, horn strobes, chimes, chime strobes, speakers and speaker strobes.(White, Red).
SBBGWL, SBBGRL. Wall-mount, compatible with compact horns, strobes, horn strobes (White, Red).
BEZELS*
BZW, BZR. Wall Red Bezel Kit (White, Red).
BZGW, BZGR. Compact Wall Red Bezel Kit (White, Red).
BZWC, BZRC. Horn Strobe Ceiling Red Bezel Kit (White, Red).
BZSPW, BZSPR. Speaker Wall Red Bezel Kit (White, Red).
BZSPWC, BZSPRC. Speaker Ceiling Red Bezel Kit (White, Red).
*Each bezel pack ships in a package of 5. For desired bezel option add -F (FIRE), -AL (ALERT), -EV (EVAC), -AG (AGENT), -P (Plain), -SP (FUEGO), -PG (FOGO) suffix for desired printing.
The NOTIFIER SWIFT® AV bases WAV-CRL, WAV-CWL, WAV-RL, and WAV-WL are intended for use with compatible System Sensor L-Series AV notification appliances to meet a comprehensive range of notification requirements. The AV Base provides power for the audio and visual signals and supports wireless communication with the Fire Alarm Control Panel (FACP). The L-Series AV notification appliance is mounted directly to the wireless AV base allowing flexibility in color, placement and signal output. Power is supplied through two sets of 4 batteries – one set provides power for wireless communication, and the other set provides power for the notification appliance’s audio and/or visual signal. Battery life of the wireless portion is UL listed for at least 2 years. Battery life for the AV set of batteries depends upon the activation time and output level of the audio or visual signal. The AV base boosts output voltage to support 24 VDC options on connected devices.
Features
Converts compatible System Sensor L-Series AV appliances to addressable wireless AV appliances

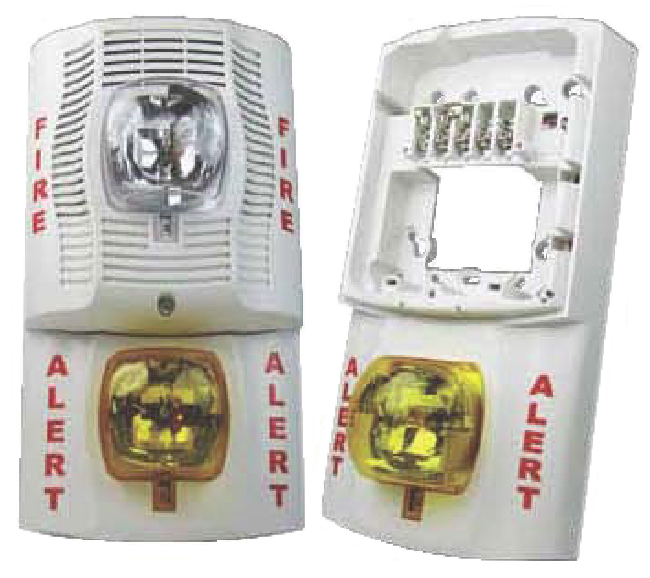

Improves aesthetics on emergency communications applications that require fire and emergency warnings by combining the functions of two to three devices on a single mounting plate and back box. SpectrAlert Advance Dual Strobe and Dual Strobe with Speaker Expander Plates provide dual strobe and speaker strobe functionality. Dual Strobe and Dual Strobe with Speaker Expander Plates are designed to be used in 12 or 24 volt, DC or FWR (full wave rectified) systems. Amber lens strobes are UL 1638-Listed (Visual Signaling Appliances) for Private Mode General Utility Signaling. A table is also provided to show the candela rating per the UL 1971 test procedures. All SpectrAlert Advance products are suitable for use in synchronized systems. The System Sensor MDL module may be used to provide synchronization.
Features
UL 1638-Listed amber lens strobe included.
Meets DOD specification requirements.
Field-selectable candela settings: Standard: 15, 15/75, 30, 75, 95, 110, 115 (please refer to Equivalent Candela Rating for UL 1971 Table).
Automatic selection of 12- or 24-volt operation at 15 and 15/ 75 candela.
Compatible with System Sensor synchronization protocol.
Optional tamper-resistant screw included.
Designed to be used in 12 or 24 volt, DC or FWR systems.
Rated from 32°F to 120°F (0°C to 49°C).
SEP-SPSW is compatible with and accommodates the installation of SPSW, SPSWH, SPSW-P, SPSWV, SPSWV-P, and SPSWH-P.
SEP-SW is compatible with and accommodates the installation of SW, SWH, SW-P, and SWH-P.
Used in flush-mounted and surface-mounted applications.
Specifications
Operating Temperature: 32°F to 120°F (0°C to 49°C)
Relative Humidity: 10% – 93% non-condensing.
Strobe Flash Rate: 1 flash per second
Nominal Voltage (strobes): Regulated 12VDC/FWR or regulated 24DC/FWR
Operating Voltage Range (includes fire alarm panels with built in sync): 8 to 17.5V (12V nominal) or 16 to 33V (24V nominal)
Operating Voltage with MDL Sync Module: 9 to 17.5V (12V nominal) or 17 to 33V (24V nominal)
The Strobe Wire Guard Damage Stopper® is an excellent way to protect strobe units against both vandalism and accidental damage. These wire guards provide maximum protection for System Sensor SPECTRAlert Advance series strobe notification appliances. Constructed of tough, 9-gauge steel wire that is coated with corrosion resistant red or white polyester, these guards can take hard knocks in stride. This Stopper is highly recommended for areas where abuse is severe or it is imperative that strobe units continue to operate.
Features
Offers protection against vandalism and accidental damage
Constructed of tough 9-gauge steel wire.
Installation is fast and simple with screws and anchors provided.
Simple removal for maintenance.
Coated with corrosion resistant polyester.
Guaranteed for a lifetime against breakage in normal use.
