NOTIFIER CAB-5 Series FACP Cabinets Backboxes with Locking Doors

Description

All NOTIFIER CAB-5 cabinets for fire alarm control panels are fabricated from 16- gauge steel. The cabinet assembly consists of two basic parts: a backbox and a locking door. NOTIFIER CAB-5 Cabinets are available in black, with or without windows. The window model provides a tasteful combination to accent the decor of the finest lobby setting.

• The key-locked door is provided with a pin-type hinge for easy door removal during installation, two keys, and the necessary hardware to mount the door to the backbox.
• The backbox has been engineered to provide ease-of-entry for the installer. Knockouts are positioned at numerous points to aid the installer in bringing a conduit into the enclosure with a minimum of hardship.
• Right- or left-hand hinges, selectable in the field. Door opens 120°.
• Cabinets are arranged in five standard sizes, A (one tier) through E (five tiers).
• Red cladding kits are available for ease of customization when red cabinets are required.

A complete NOTIFIER CAB-5 cabinet assembly consists of: a door, dress panels, a backbox, an optional battery plate, and an optional cladding kit (red color). For each cabinet required, order one “DR” door, one “SBB” backbox and dress panels. The BP-5 battery plate is required for each cabinet assembly that mounts batteries and/or a power supply in the lower position of the cabinet.

Dimensions and Features of CAB-5 FACP Cabinets

ONE TIER, “A” SIZE
DR-A5: Door assembly, window, one tier, BLACK, 15 lbs.
DR-A5B: Door assembly, solid door, one tier, BLACK, 18.5 lbs.
SBB-A5: Backbox assembly, one tier, BLACK, 22.5 lbs.
DTR-A5: Cladding kit (RED) for use with “A” size door

TWO TIERS, “B” SIZE
DR-B5: Door assembly, window, two tiers, BLACK, 21 lbs.
DR-B5B: Door assembly, solid door, two tiers, BLACK, 25.5 lbs.
SBB-B5: Backbox assembly, two tiers, BLACK, 29 lbs.
DTR-B5: Cladding kit (RED) for use with “B” size door

THREE TIERS, “C” SIZE
DR-C5: Door assembly, window, three tiers, BLACK, 24 lbs.
DR-C5B: Door assembly, solid door, three tiers, BLACK, 31 lbs.
SBB-C5: Backbox assembly, three tiers, BLACK, 36 lbs.
DTR-C5: Cladding kit (RED) for use with “C” size door

FOUR TIERS, “D” SIZE
DR-D5: Door assembly, window, four tiers, BLACK
DR-D5B: Door assembly, solid door, four tiers, BLACK
SBB-D5: Backbox assembly, four tiers, BLACK
DTR-D5: Cladding kit (RED) for use with “D” size door

FIVE TIERS, “E” SIZE
DR-E5: Door assembly, window, five tiers, BLACK
DR-E5B: Door assembly, solid door, five tiers, BLACK
SBB-E5: Backbox assembly, five tiers, BLACK
DTR-E5: Cladding kit (RED) for use with “E” size door

Knockouts on Top of Cabinets

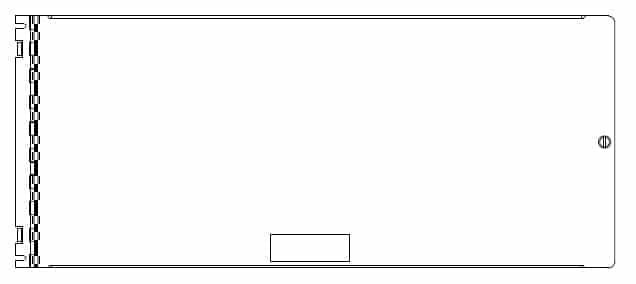

BP-5 Battery Plate
The BP-5 Battery Plate covers the Main Power Supply and the batteries in the cabinet. Only one BP-5 is required per cabinet.
