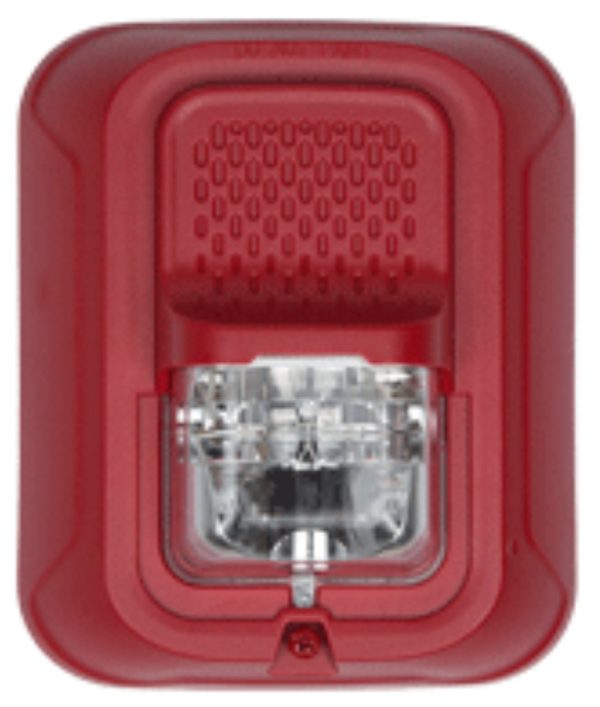

NOTIFIER Strobes

Strobes are available in ceiling-mount or wall-mount varieties to meet a wide variety of applications. They are ideal for warning hearing-impaired individuals during an emergency event. To expand the versatility of stobes, colored lenses are sold separately as accessories.

NOTIFIER Horns Strobes Horn-Strobes Wall Indoor Selectable-Output Data Sheet PDF
NOTIFIER Strobes Horn-Strobes Indoor Ceiling Selectable-Output Data Sheet PDF
Request Information

SKU: f5bbc03ae08a-10-1-1 Category: Fire Alarm Notification Appliances

Description

NOTIFIER Horns Strobes Horn-Strobes Wall Indoor Selectable-Output

NOTIFIER Wall Strobes

NOTIFIER Strobes: SGRL, SGWL, SCRL, SCWL, SCWL-CLR-ALERT, SRL, SRL-P, SRL-SP, SWL, SWL-ALERT, SWL-CLR-ALERT, SWL-P are available in ceiling-mount or wall-mount varieties to meet a wide variety of applications. They are ideal for warning hearing-impaired individuals during an emergency event. To expand the versatility of stobes, colored lenses are sold separately as accessories.
The L-Series offers the most versatile and easy-to-use line of horns, strobes, and horn strobes in the industry with lower current draws and modern aesthetics. With white and red plastic housings, standard and small footprint devices, and plain, FIRE-printed devices, L-Series can meet virtually any application requirement.
The L-Series product line of horns, strobes, and horn strobes include a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.
To further simplify installation and protect devices from construction damage, L-Series utilizes a universal mounting plate for all standard and compact models with an onboard shorting spring, so installers can test wiring continuity before the device is installed.
Installers can also easily adapt devices to a suit a wide range of application requirements using field-selectable candela settings, automatic selection of 12- or 24-volt operation, and a rotary switch for horn tones with two volume selections.

NOTIFIER Strobes Horn-Strobes Indoor Ceiling Selectable-Output

NOTIFIER Ceiling Strobes

Features of NOTIFIER Strobes

Plug-in design and protective cover reduce ground faults.
Minimal intrusion into the back box.
Universal mounting plate with an onboard shorting spring tests wiring continuity before installation.
Tamper-resistant construction.
Automatic selection of 12- or 24-volt operation at 15 and 30 candela.
Horn rated at 88+ dBA at 16 volts.
Rotary switch for horn tone and two volume selections.
Mounting plate shorting spring checks wiring continuity before device installation.
Electrically Compatible with legacy SpectrAlert® and SpectrAlert Advance devices.
Compatible with MDL3 sync module.

Components

NOTIFIER Wall Strobes

WALL HORN STROBES

P2WL(A)(-E)(-F), P2RL(A)(-E)(-F). 2-Wire, Horn Strobe (White, Red).

P2GWL(A)(-E)(-F), P2GRL(A)(-E)(-F). 2-Wire, Compact Horn Strobe (White, Red).

P2WL(A)-P, P2RL(A)-P. 2-Wire, Horn Strobe, Plain (White, Red).

P2WL-SP, P2RL-SP. 2-Wire, Horn Strobe, FUEGO (White, Red).

WALL STROBES

SWL(A)(-E)(-F), SRL(A)(-E)(-F). Strobe, Red (White, Red).

SGWL(A)(-E)(-F), SGRL(A)(-E)(-F). Compact Strobe (White, Red).

SWL(A)-P, SRL(A)-P. Strobe, Plain (White, Red).

SRL-SP. Strobe, FUEGO (Red).

SWL-CLR-ALERT. Strobe, ALERT (White).

SWL-ALERT. Strobe, Wall, Amber Lens, ALERT (White).

HORNS

HWL(A), HRL(A). Horn (White, Red).

HGWL(A), HGRL(A). Compact Horn (White, Red).

CEILING HORN STROBES

PC2WL(A) (-E)(-F), PC2RL(A) (-E)(-F). 2-Wire, Horn Strobe (White, Red).

NOTIFIER Ceiling Strobes

CEILING STROBES

SCWL(A) (-E)(-F), SCRL(A) (-E)(-F). Strobe (White, Red).

SCWL-CLR-ALERT. Strobe, ALERT (White).

ACCESSORIES

TR-2W, TR-2. Universal Wall Trim Ring (White, Red).

SBBWL, SBBRL. Wall Surface Mount Back Box (White, Red).

SBBGWL, SBBGRL. Compact Wall Surface Mount Back Box (White, Red).

TR-2W, TR-2. Universal Ceiling Trim Ring (White, Red).

SBBCWL, SBBCRL. Ceiling Surface Mount Back Box (White, Red).

NOTE: “A” suffix indicates ULC-Listed model. ULC-listed devices include required French labeling. See Agency Listings for listing details.

NOTE: “A” suffix indicates ULC-listed models, ULC models have FIRE/FEU marking on cover.

NOTE: ULC-listed models add “-E” suffix for English only “FIRE” marking on cover.

NOTE: ULC-listed models add “-F” suffix for French only “FEU” marking on cover.

Specifications

Standard Operating Temperature 32°F to 120°F (0°C to 49°C)
Humidity Range 10 to 93% non-condensing
Strobe Flash Rate 1 flash per second
Nominal Voltage Regulated 12VDC or regulated 24DC/FWR1
Operating Voltage Range 8 to 17.5V (12V nominal) or 16 to 33V (24V nominal)
Electrically compatible with System Sensor Sync Circuit listed to UL 464
Compatible with previous designs dating back to 1997
Input terminal wire gauge 12 to 18 AWG

Listings:

UL 1791
FM
CSFM
