Sensepoint XCD Flammable, Toxic and Oxygen Gas Detector

Sensepoint XCD makes it simple to monitor and detect hazardous gases for safety and compliance standards.

Sensepoint XCD Gas Detector Brochure
Request Information

SKU: f5bbc03ae08a Category:

Description

Print Friendly, PDF & Email

Gas Monitoring for Highly Toxic and Explosive Atmospheres
Sensepoint XCD makes it simple to monitor and detect hazardous gases for safety and compliance standards. Sensepoint XCD fixed sensors offer comprehensive monitoring of flammable and toxic gas hazards as well as oxygen deficiency in potentially explosive atmospheres, both indoors and out. Special requirements exist for potentially explosive working environments within gas, oil, chemical production as well as dust-filled environments in wood processing and food industries. Users can modify detector operation using the LCD and magnet switches without ever needing to open the unit. This enables one-man, non-intrusive operation and reduces routine maintenance time and costs.

A tri-color backlit LCD clearly indicates the unit’s status at a glance, even from a distance. A steady green backlight indicates normal operation, flashing yellow indicates fault and flashing red indicates an alarm.

All detectors are supplied pre-configured and include 2 programmable alarm relays, 1 programmable fault relay as well as an industry standard 4-20mA output (sink or source selectable) and MODBUS.
The scale, range, relay operation, alarm set point and electronic tag number of the detector can be adjusted using the transmitter’s LCD and non-intrusive magnetic switches. Outputs are automatically inhibited during adjustment, thereby reducing the risk of false alarm at the control panel during maintenance.

Sensepoint XCD has an integral mounting plate for surface mounting or can be mounted to a horizontal or vertical pipe using the optional pipe mounting bracket. Electrical installation can be made using either conduit or cable with suitable mechanical protection. Two M20 or ¾”NPT entries are provided (depending on certification). A weatherproof cap is also included for use in the harshest outdoor conditions. Other optional accessories include a sunshade/deluge protection, duct mounting kit, collecting cone and remote mounting sensor socket.

Sensepoint XCD ensures easy installation and the fastest routine operation by removing the need for hot work permits in hazardous areas. Using easy to replace plug-in sensors, downtime is also reduced and on-going costs are minimized through the use of poison resistant flammable sensors, poison immune infrared Hydrocarbon sensors and patented Surecell toxic sensors.

Features

Print Friendly, PDF & Email
  • Flammable (catalytic or infrared), toxic and oxygen versions available
  • New and retrofit applications
  • Suitable for indoor or outdoor use
  • Stainless steel or aluminum explosion-proof housing options
  • IP66 as standard

Proven and Reliable Sensor Technology

  • Surecell electro-chemical sensors
  • Poison immune infrared sensors
  • Poison resistant catalytic bead sensors
  • Long life sensors

Global Approvals

  • US and Latin America, European, Canadian and Asian
  • Compliant with UL, INMETRO, ATEX, IECEx, CSA, KTL, PA, GB and CCCF standards

Sensepoint XCD Color Status
Easy to Use
Ready, Steady, Go! – Sensepoint XCD uses three instantly recognizable ‘traffic light’ colors to indicate its status. The large tri-color backlit LCD is steady green to indicate normal operation, flashes yellow to indicate a fault/warning and flashes red to indicate an alarm. This allows anyone in the area to clearly see at a glance the status of any detector. This can be particularly useful to identify detector status if the detector is located in a difficult to access area or if a number of detectors are located in the same area.

  • User friendly and intuitive tri-color backlit display with digits, bar graph and icons
  • Fully configurable via magnetic switches
  • Optional remote sensor mounting
  • Selectable sink or source 4-20mA output
  • Auto-inhibit during maintenance
  • MODBUS communications for remote diagnostics/configuration

Cost Effective

  • Common transmitter platform
  • Minimal training required
  • Reduced spares
  • Non-intrusive, one-man operation
  • Plug-in sensor replacement
  • MODBUS multi drop option offers cabling savings

Simple Installation

  • Plug-in display module removes to give access to terminal area
  • Integral mounting bracket
  • 2 x M20 or ¾” NPT cable/conduit entries (certification dependent)
  • Removable plug/socket type terminal blocks for ease of wiring
  • Sink/source switch to suit preferred wiring topology

Range of Optional Accessories

  • Remote sensor mounting kit
  • Remote sensor gassing kit
  • Duct mounting kit
  • Calibration gas flow housing
  • Collecting cone

Options

Print Friendly, PDF & Email

There are three different types of the XCD transmitter for use with three different families of sensors.
Sensepoint XCD mV Transmitter
The mV type transmitter is for use with the mV family of XCD sensors including catalytic sensors to detect flammable gases in the range 0-100%LEL and infrared (IR) sensors for detection of Hydrocarbon gases in the range 0-100%LEL and 0-100%Vol*, as well as Carbon Dioxide (CO2) in the range 0-2%Vol.
Sensepoint XCD EC Transmitter
The EC type transmitter is for use with the EC family of XCD sensors including Carbon Monoxide (CO), Hydrogen Sulfide, (H2S) and Hydrogen (H2).
Sensepoint XCD O2 Transmitter

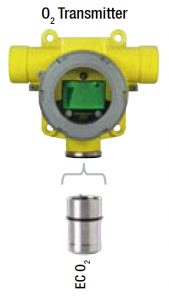

The Oxygen transmitter is for use with the Oxygen (O2) XCD sensors.
A transmitter can auto-recognize any sensor from within its sensor family. The sensor simply plugs into the bottom of the transmitter and the transmitter automatically configures itself accordingly.

Building Areas Served

Print Friendly, PDF & Email

Chemical Plants – Gases Present (Detected by XCD): General Hydrocarbons, H2S, NH3, O2

  • Raw material storage
  • Process Areas
  • Laboratories
  • Pump rows
  • Compressor stations
  • Loading/unloading areas

Oil & Gas – Gases Present (Detected by XCD): General Hydrocarbons, H2S, CO, O2

  • Exploration drilling rigs
  • Production platforms
  • Onshore oil and gas terminals
  • Refineries

Power Stations – Gases Present (Detected by XCD): Flammable, CH4, H2, O2

  • Around the boiler pipework and burners
  • Turbines
  • Coal silos and conveyor belt areas in older coal/oil fired stations

Waste Water Treatment Plants – Gases Present (Detected by XCD): General Hydrocarbons, H2S, CO, O2

  • Digesters
  • Plants sumps
  • H2S scrubbers
  • Pumps

Boiler Rooms – Gases Present (Detected by XCD): General Hydrocarbons, H2S, CO, O2

  • Incoming gas main
  • Boiler and gas piping

Hospitals – Gases Present (Detected by XCD): General Hydrocarbons, H2S, CO, O2

  • Laboratories
  • Refrigeration plants
  • Boiler rooms
